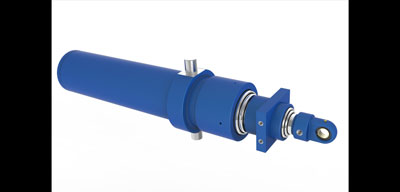

油缸型號 | 最大舉升力 | 額定壓力(MPa) | 各級缸徑 | A(mm) | B(mm) | C(mm) | D(mm) | δ(mm) | L(油缸閉合尺寸,mm) |
FE-3TG-E152*3880 | 28.3 | 16 | 158/136/115 | 201 | 331 | 135 | 50 | 42 | 1697 |
FE-3TG-E152*4090 | 28.3 | 16 | 158/136/115 | 201 | 331 | 135 | 50 | 42 | 1732 |
FE-4TG-E152*4280 | 28.3 | 16 | 158/136/115/95 | 245 | 385 | 70 | 50 | 50 | 1345 |
FE-4TG-E152*4650 | 28.3 | 16 | 158/136/115/95 | 201 | 331 | 100 | 50 | 42 | 1546 |
FE-4TG-E152*4940 | 28.3 | 16 | 158/136/115/95 | 201 | 331 | 100 | 50 | 42 | 1529 |
FE-4TG-E175*4280 | 49 | 16 | 175/158/136/115 | 245 | 385 | 70 | 50 | 50 | 1345 |
FE-4TG-E175*4620 | 49 | 16 | 175/158/136/115 | 245 | 385 | 70 | 50 | 50 | 1479 |
FE-4TG-E175*5180 | 49 | 16 | 175/158/136/115 | 245 | 385 | 70 | 50 | 50 | 1604 |
FE-5TG-E175*5780 | 49 | 16 | 175/158/136/115/95 | 245 | 385 | 70 | 50 | 50 | 1559 |
FE-5TG-E175*6180 | 49 | 16 | 175/158/136/115/95 | 245 | 385 | 70 | 50 | 50 | 1505 |
FE-6TG-E175*6060 | 49 | 16 | 175/158/136/115/95/70 | 245 | 385 | 70 | 50 | 50 | 1240 |
FE-6TG-E175*6060 | 49 | 16 | 175/158/136/115/95/70 | 245 | 385 | 70 | 50 | 50 | 1240 |
FE-5TG-E200*6180 | 64 | 16 | 200/175/158/136/115 | 270 | 400 | 100 | 50 | 42 | 1527 |
FE-5TG-E200*6350 | 64 | 16 | 200/175/158/136/115 | 270 | 400 | 100 | 50 | 42 | 1673 |
